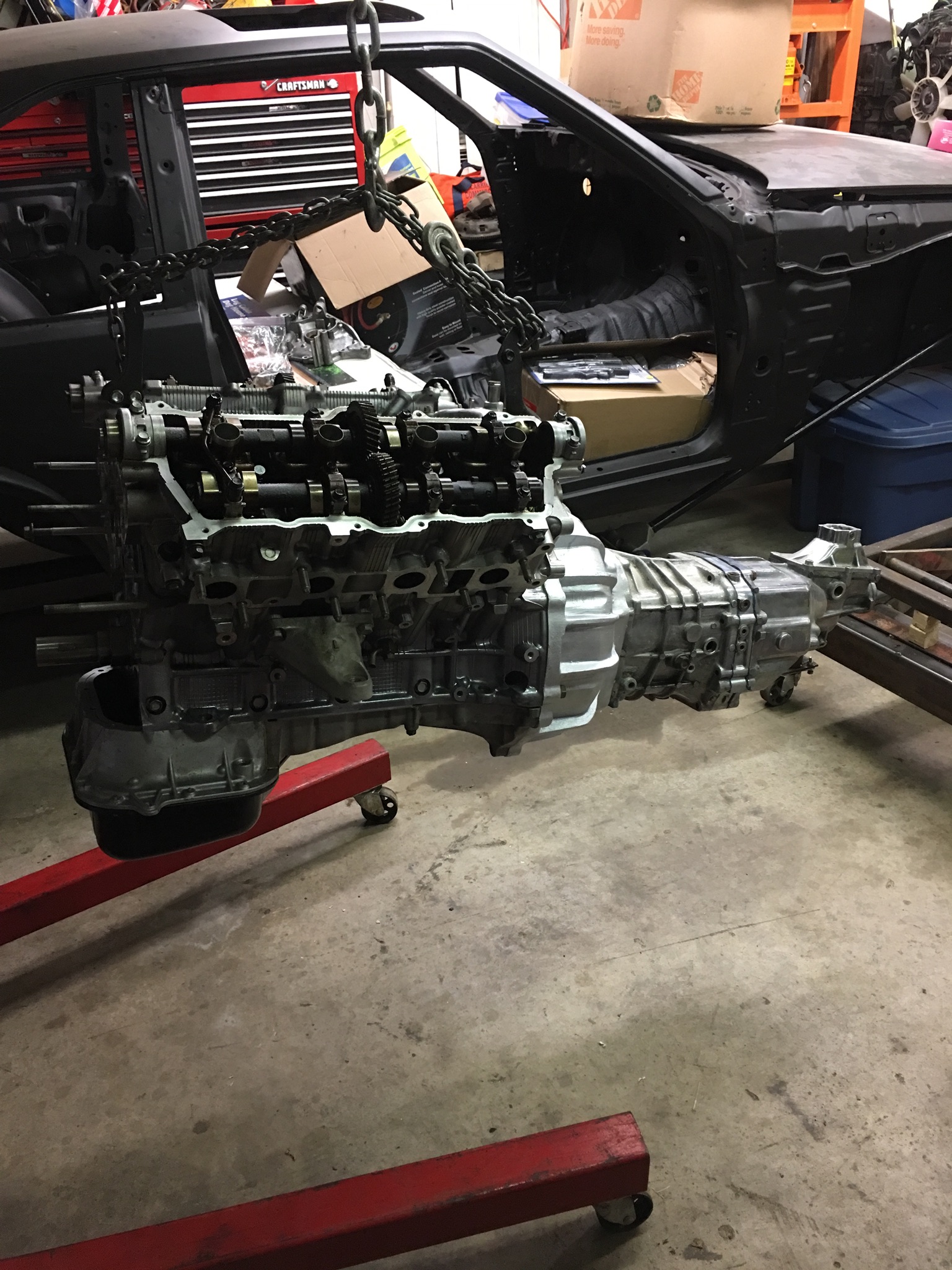

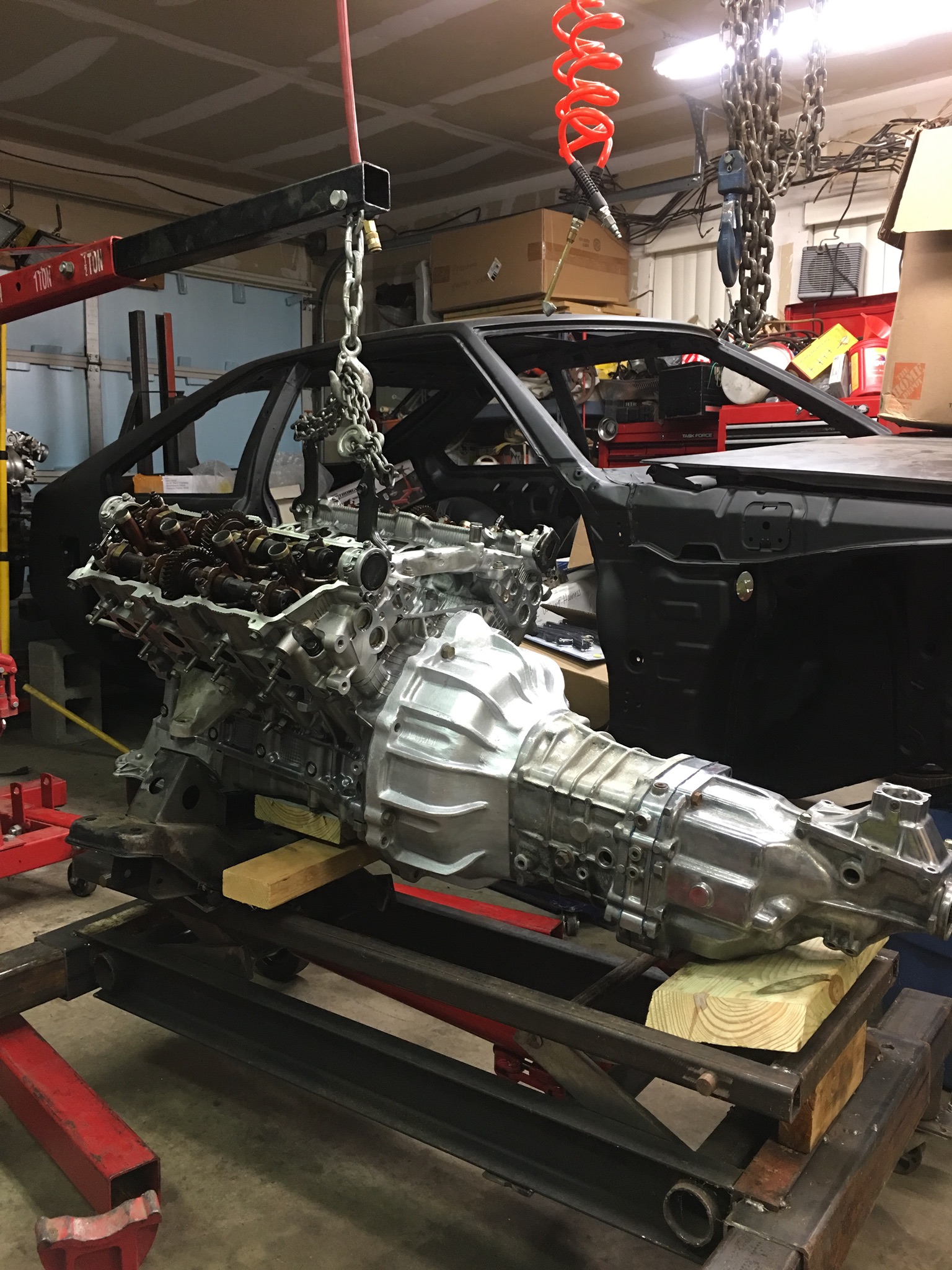

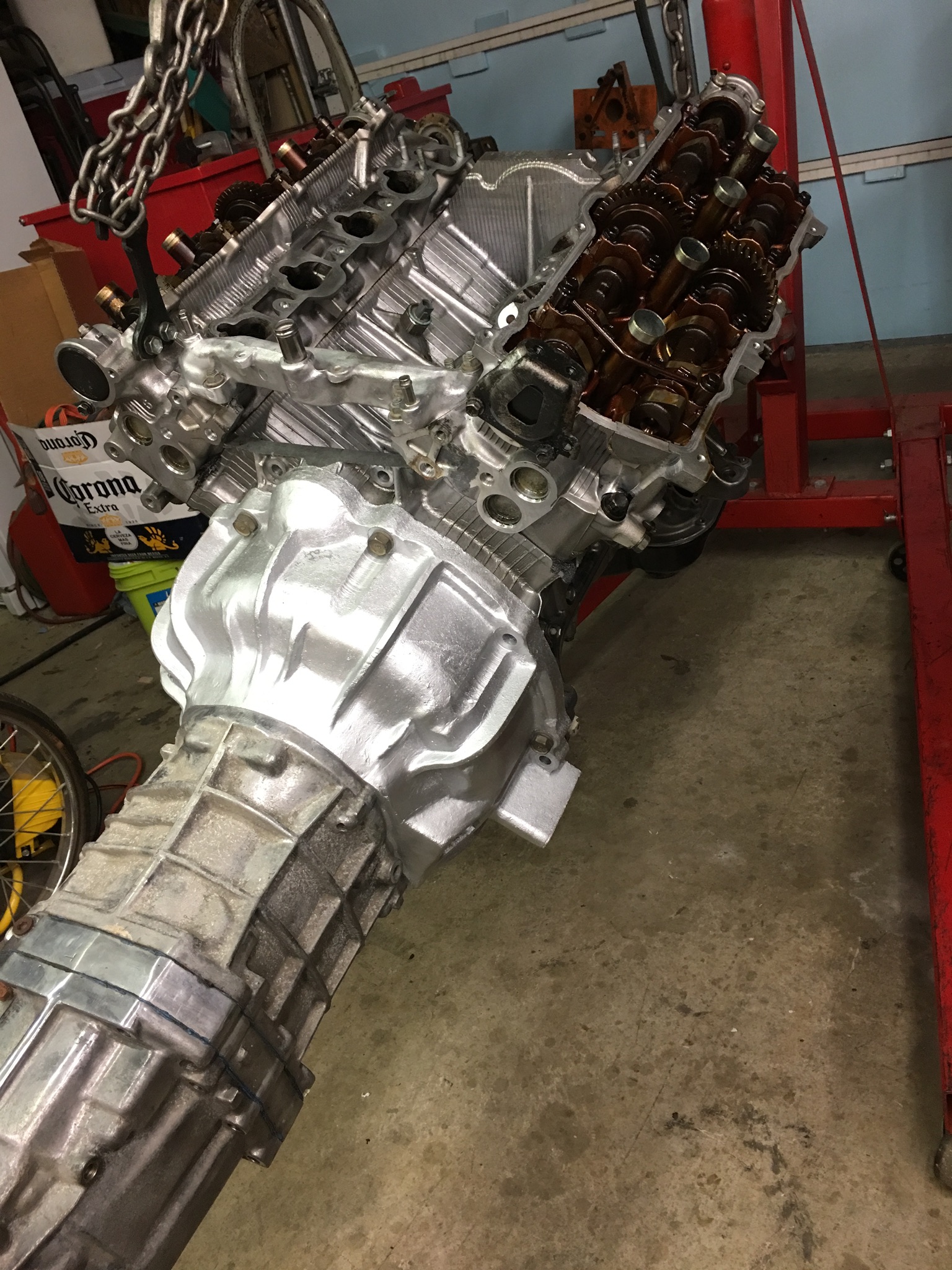

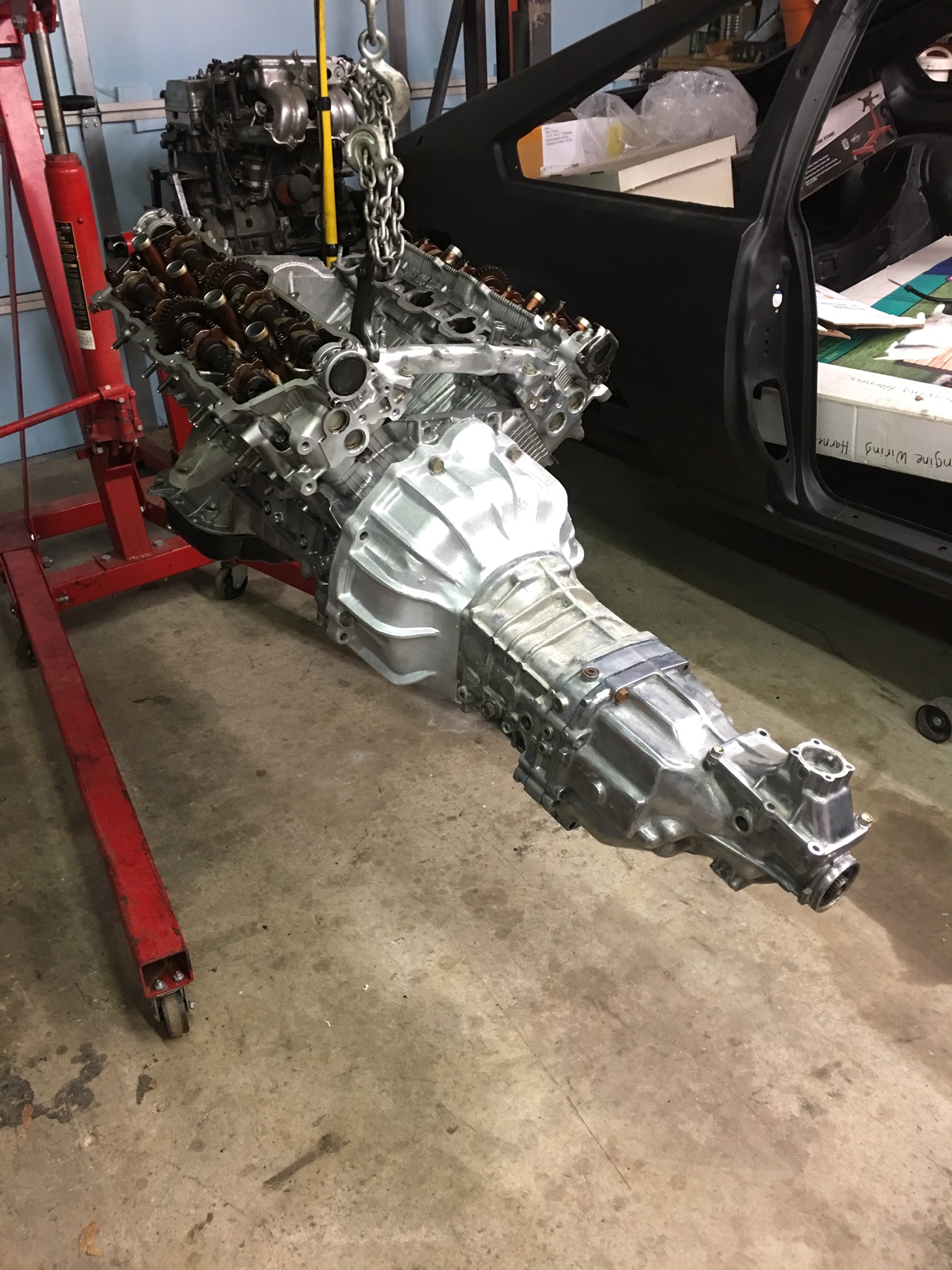

In these pictures you will see my first attempt to fit this
motor In the GTS Celica Hatchback. The Motor and original
W58 5 speed Transmission were temporaraly assembled to do
this dry fit.
Click on the thumbnail to get a larger picture
|
|
|

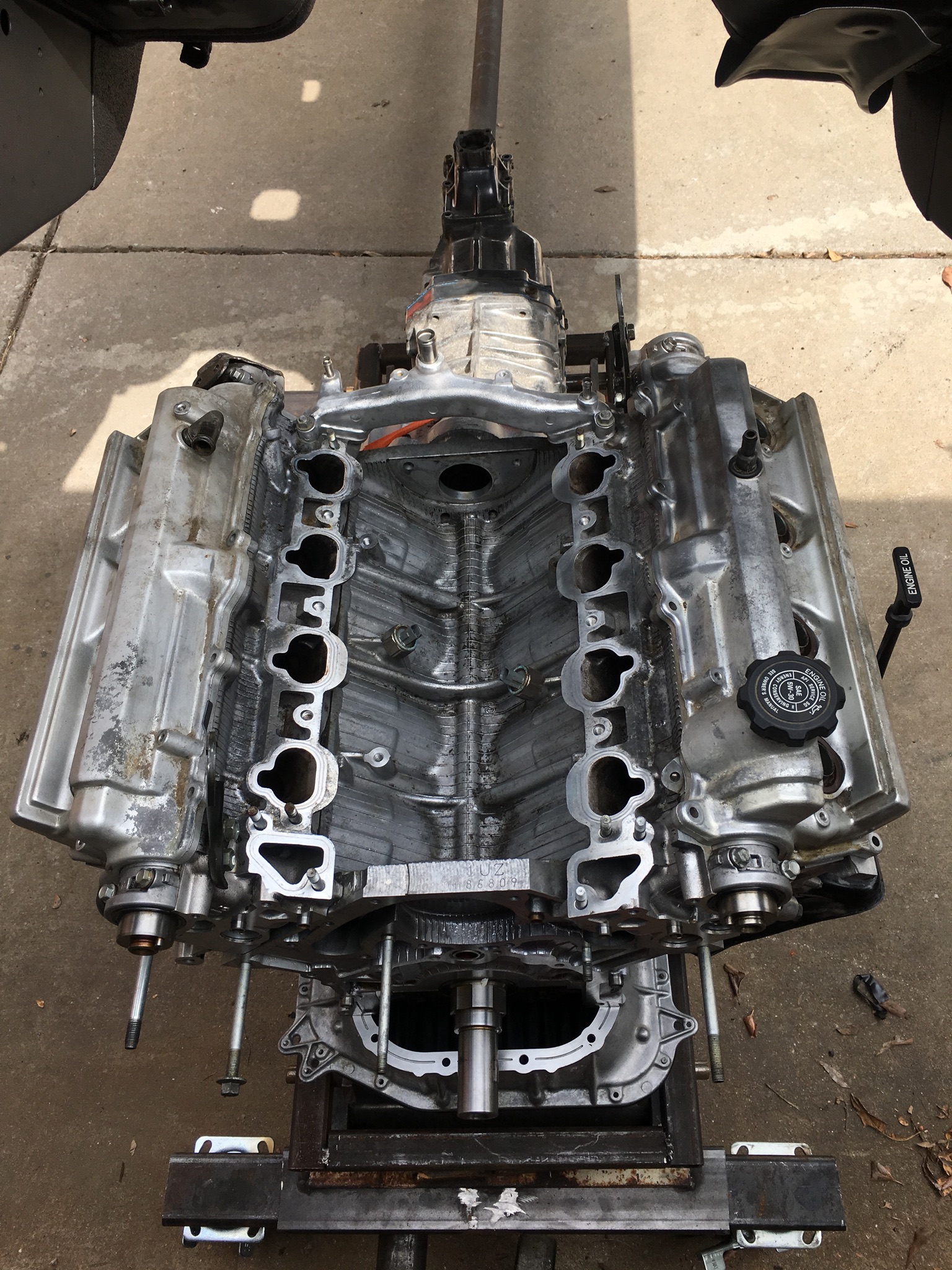

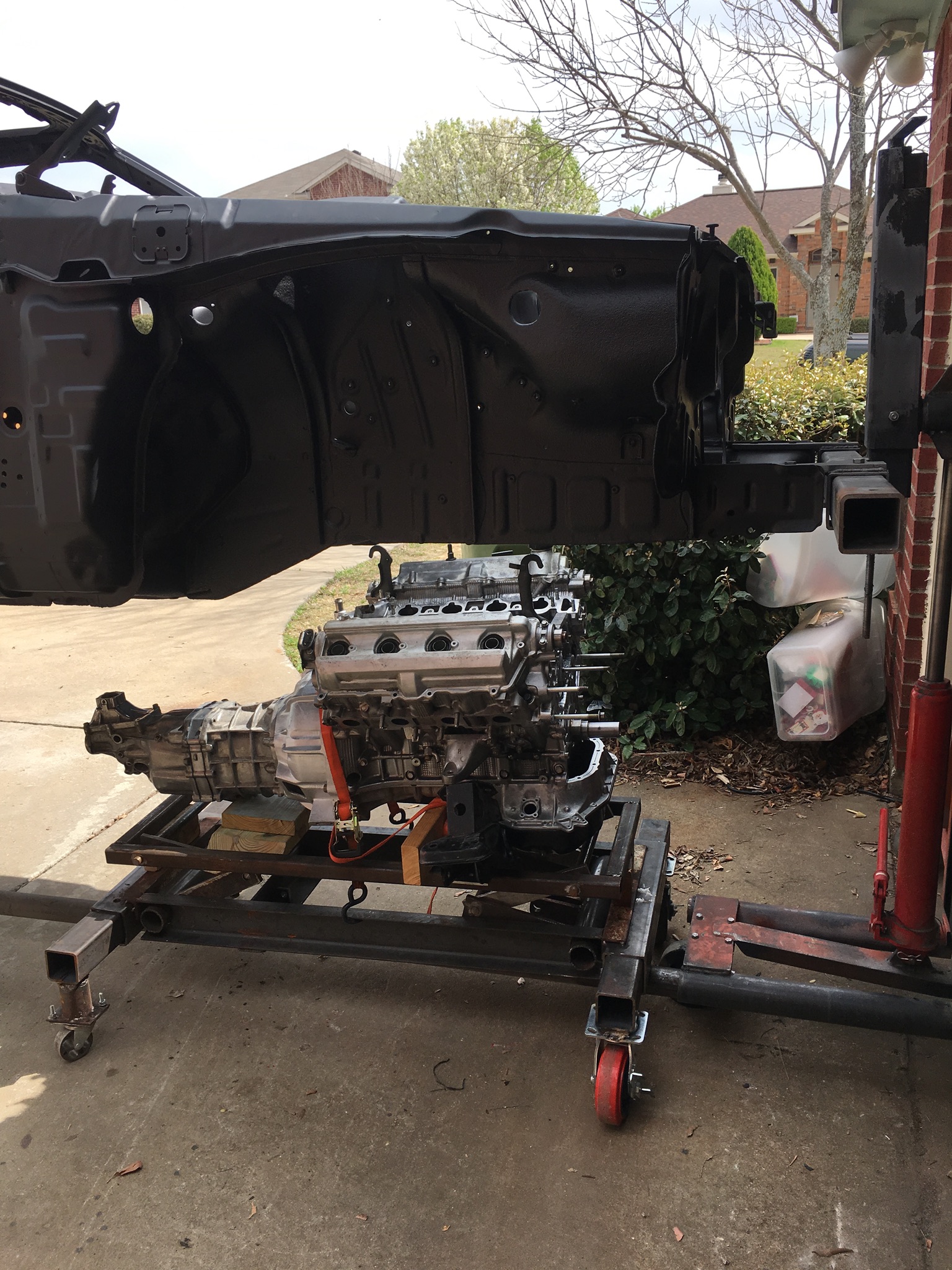

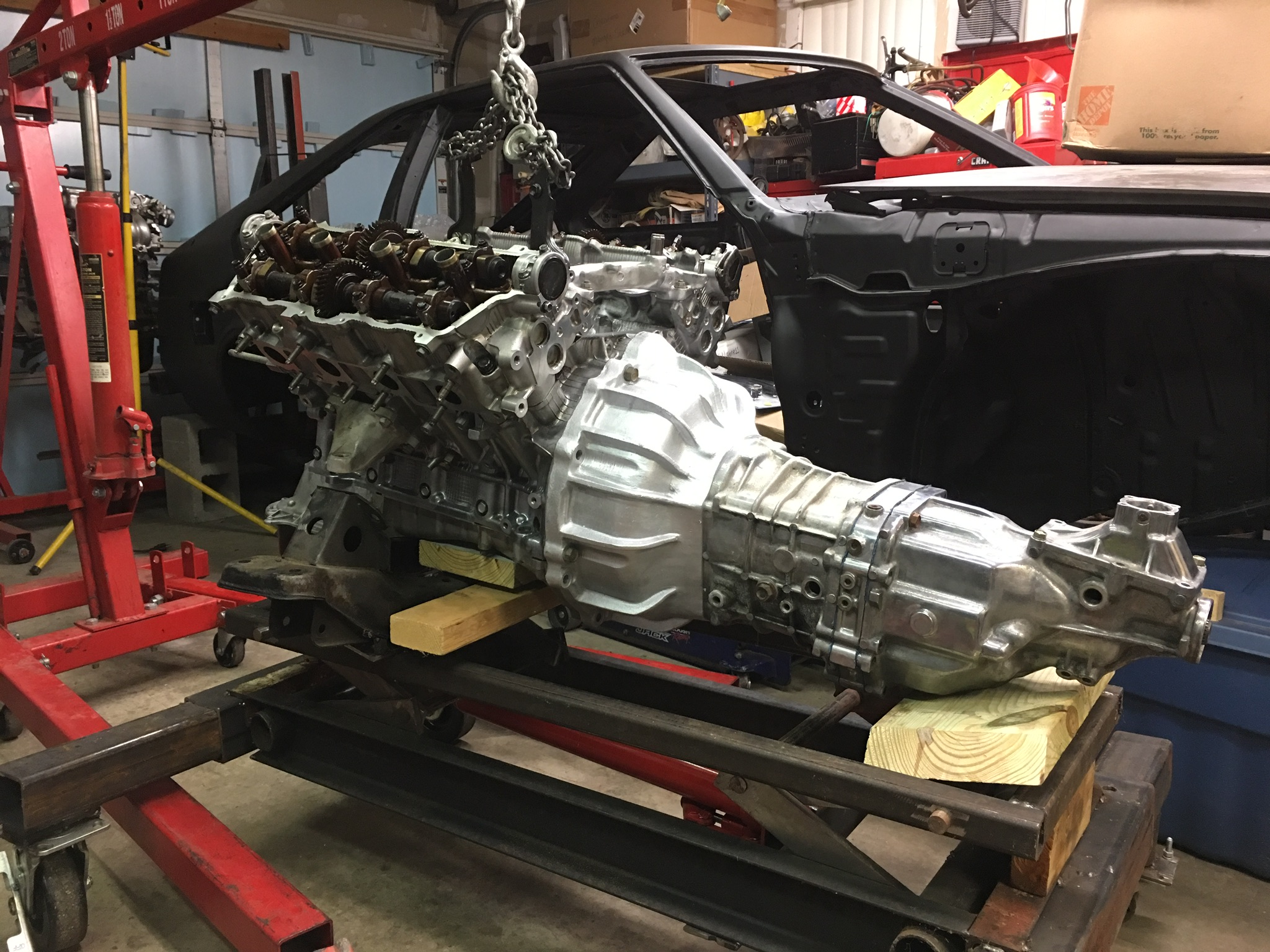

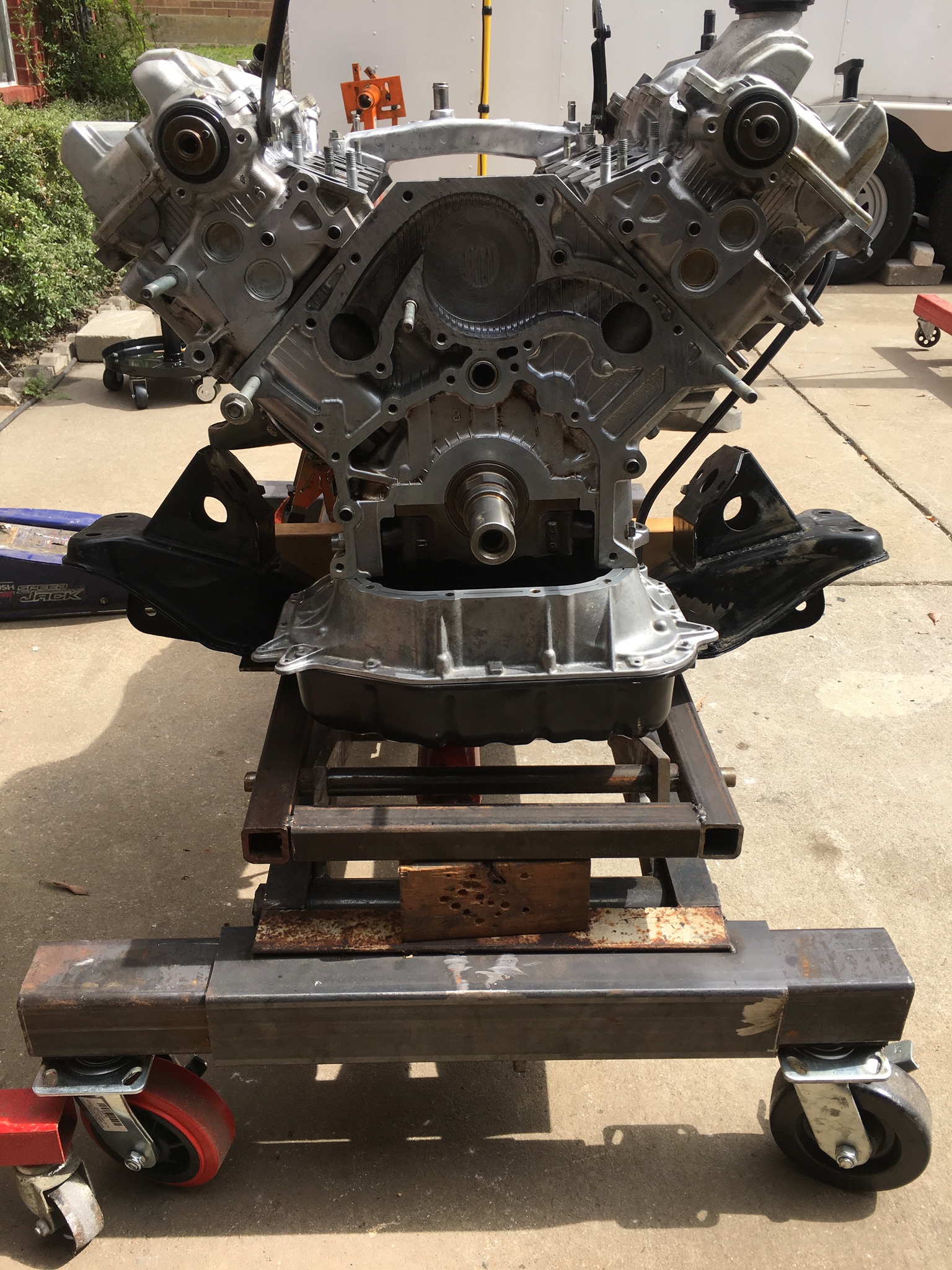

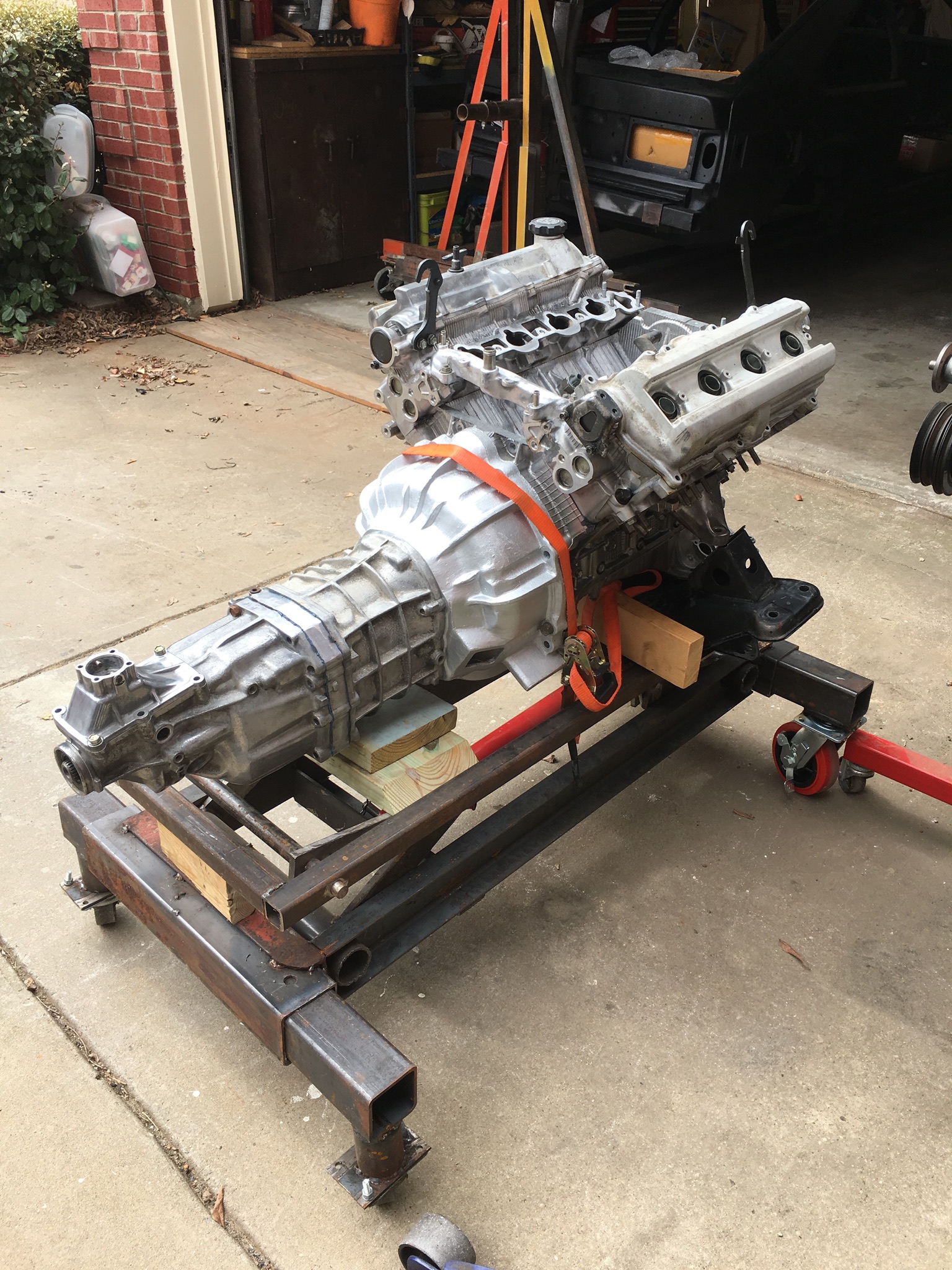

The front crossmember was clamped to a cart that I built to allow
Me to roll the whole front crossmember, engine, and transmission

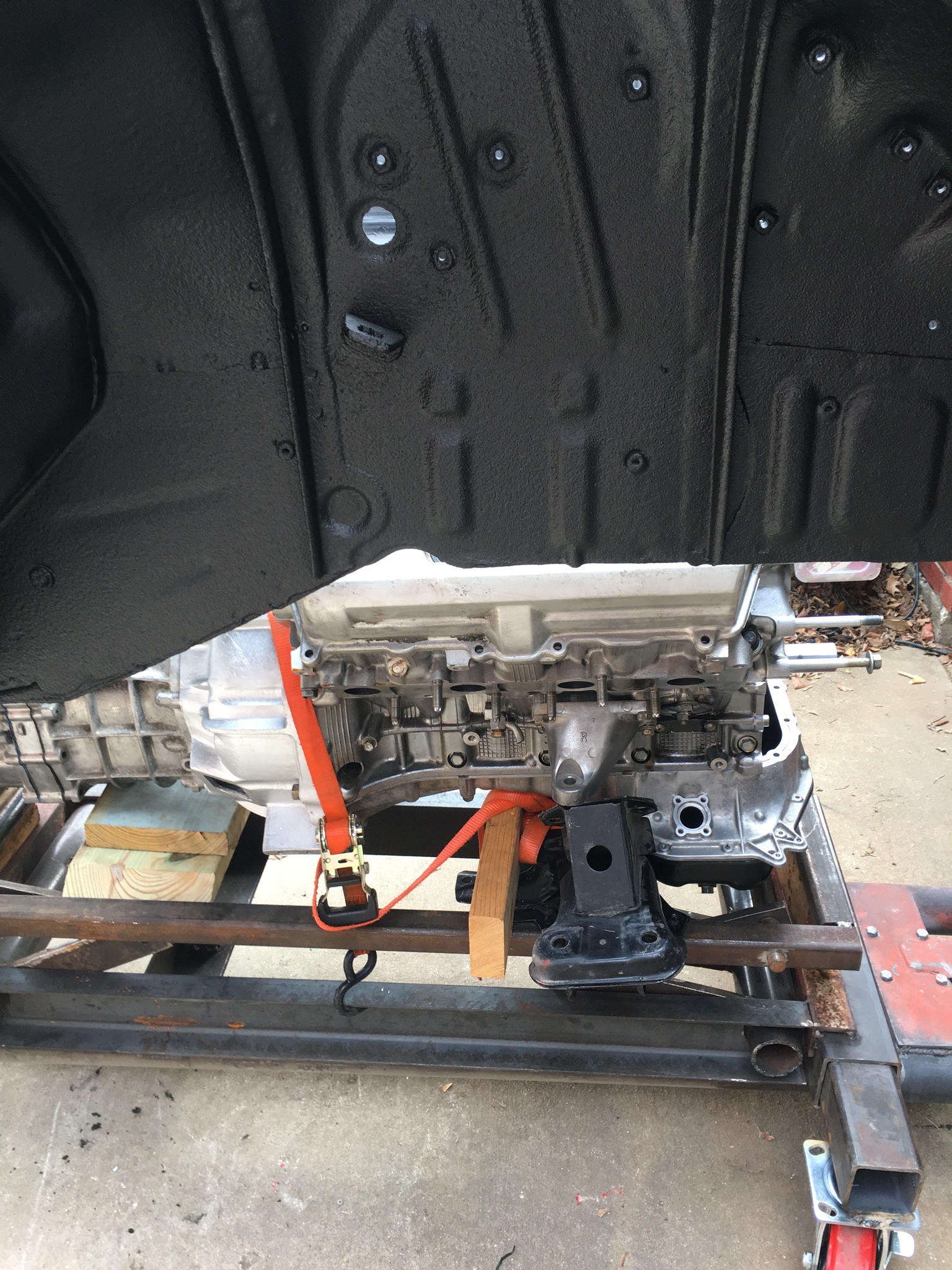

Assembly under the Car. Sinse there are no working Motor Mounts
I had to use straps and wood to hold the assembly in place.
 |
 |
 |
 |
 |
 |
 |
 |
 |

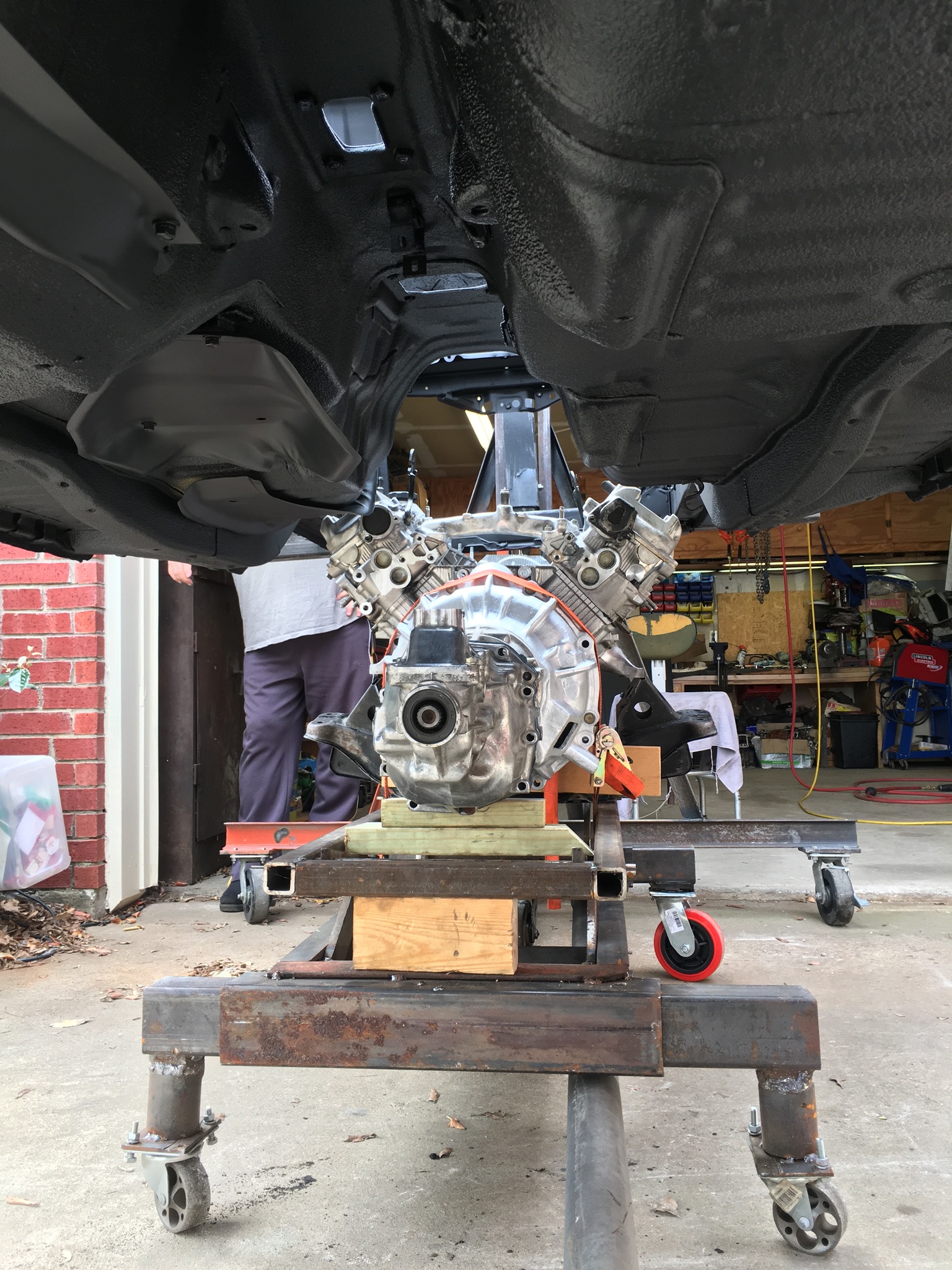

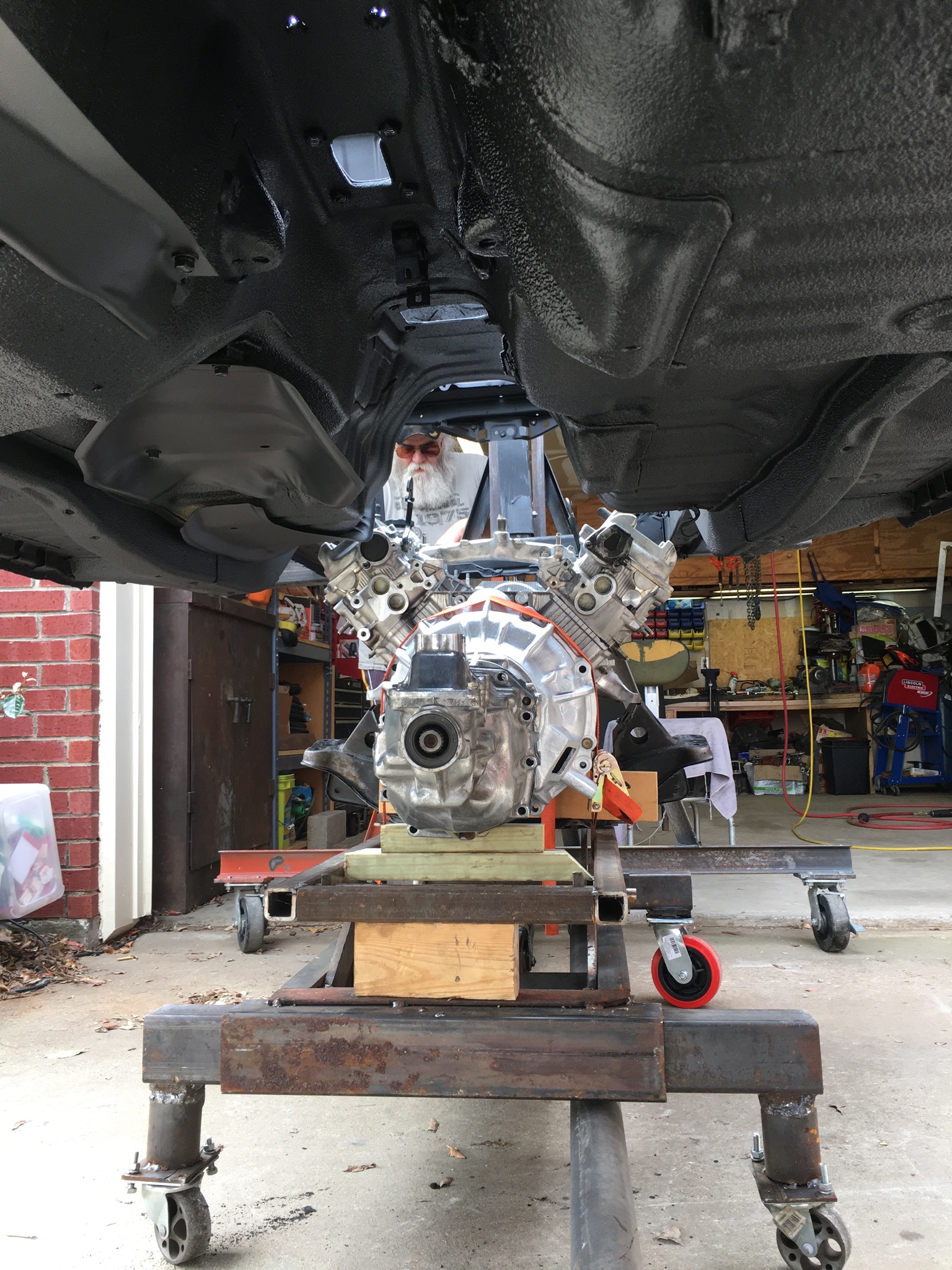

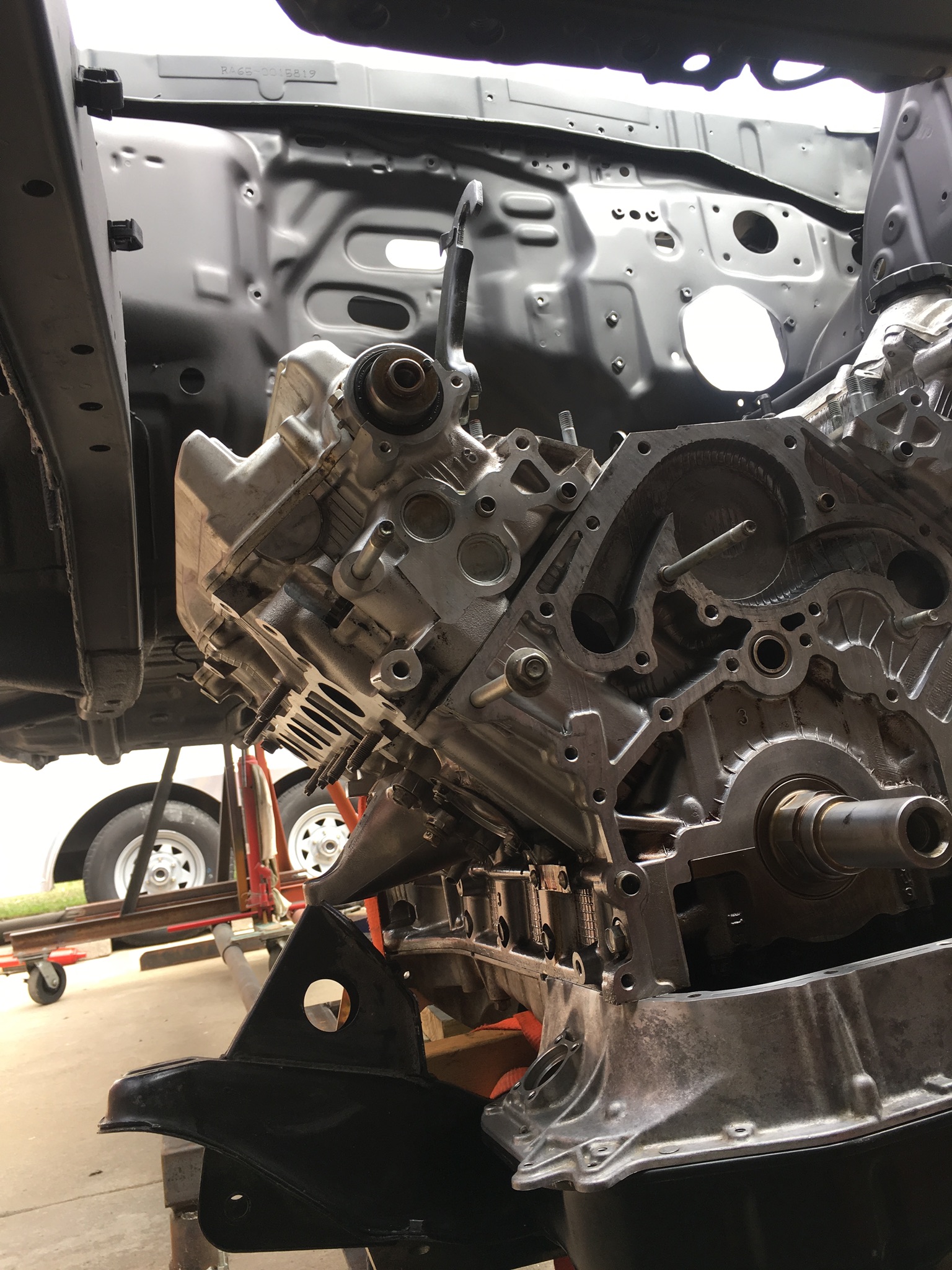

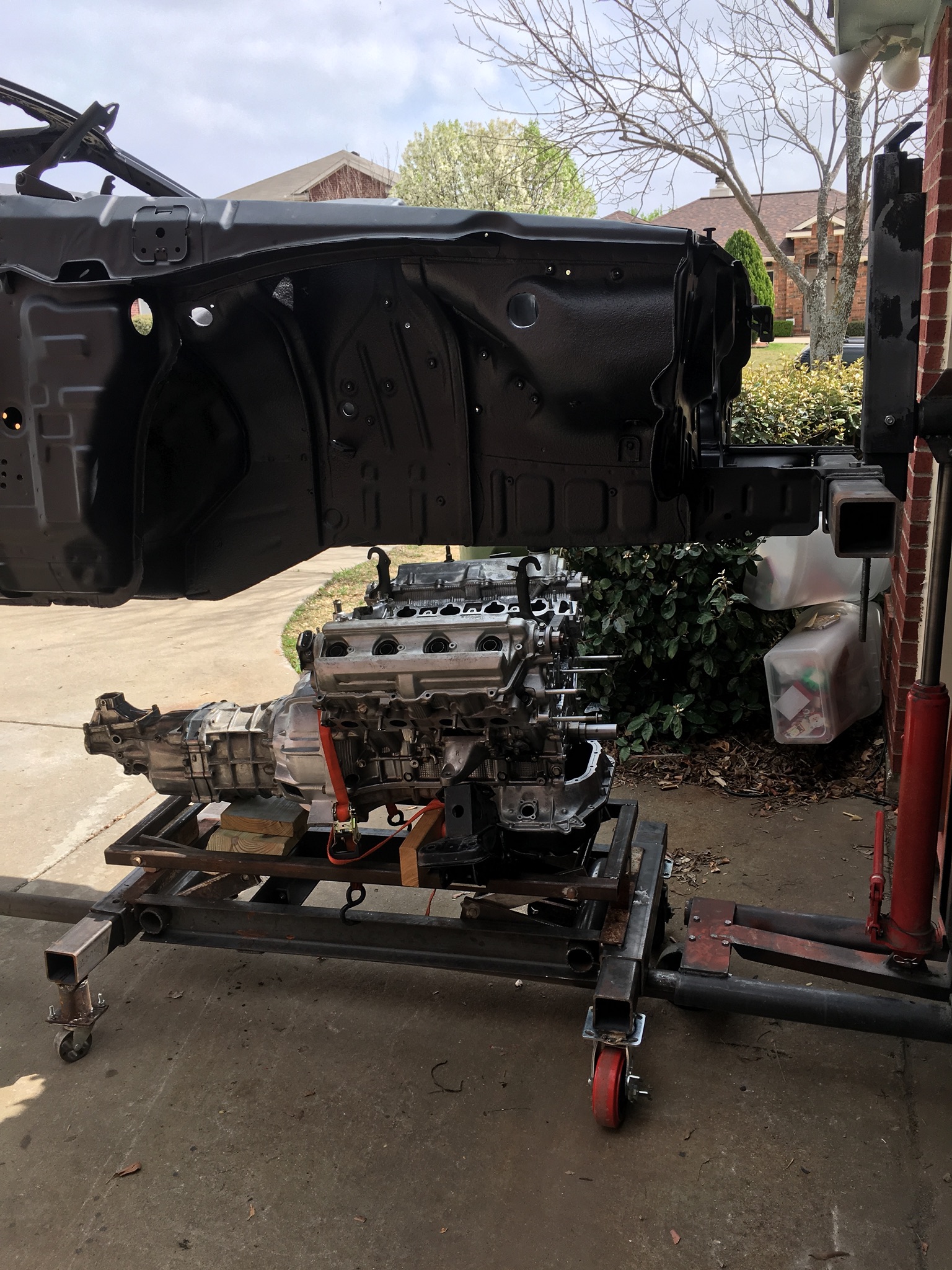

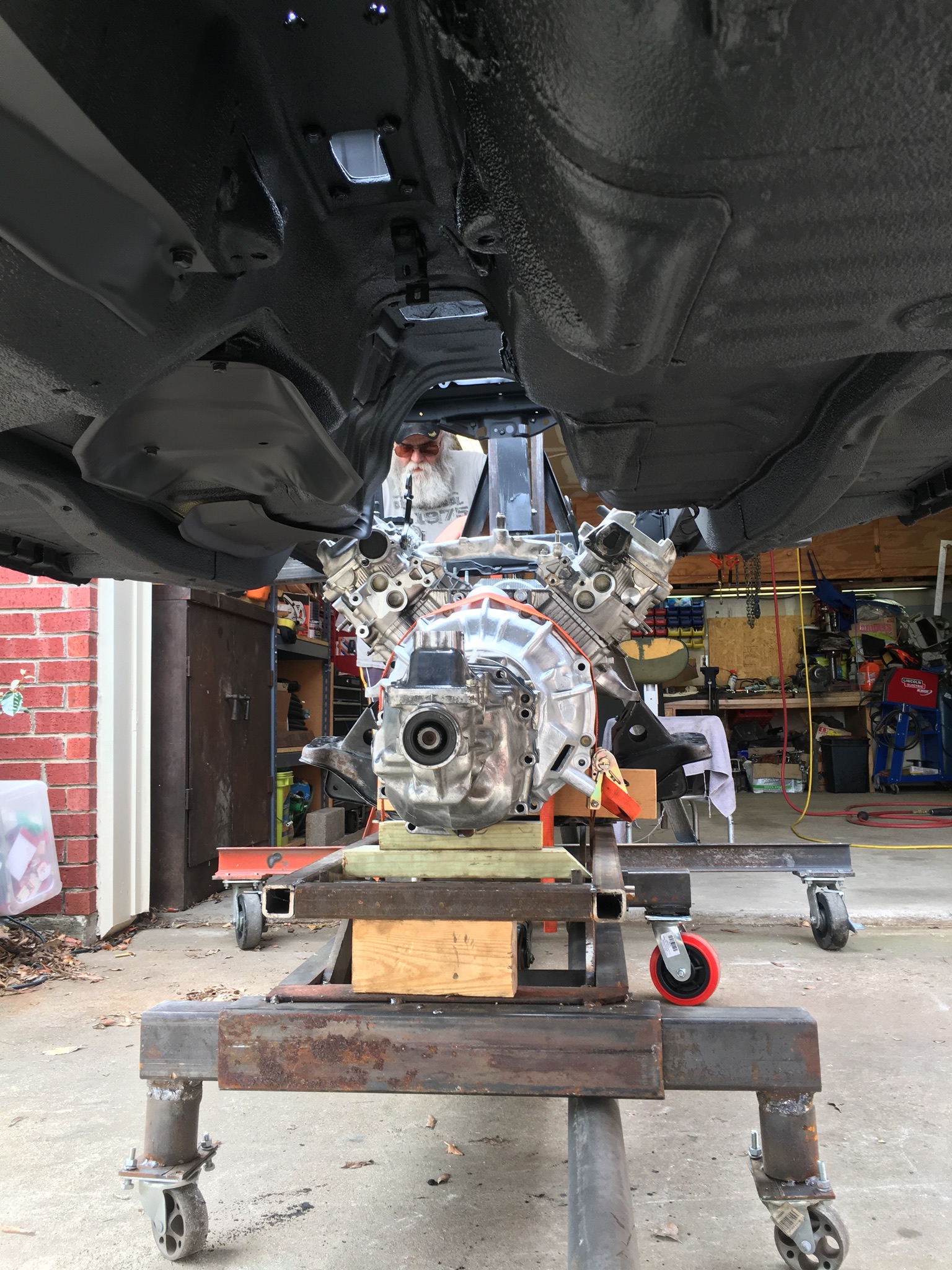

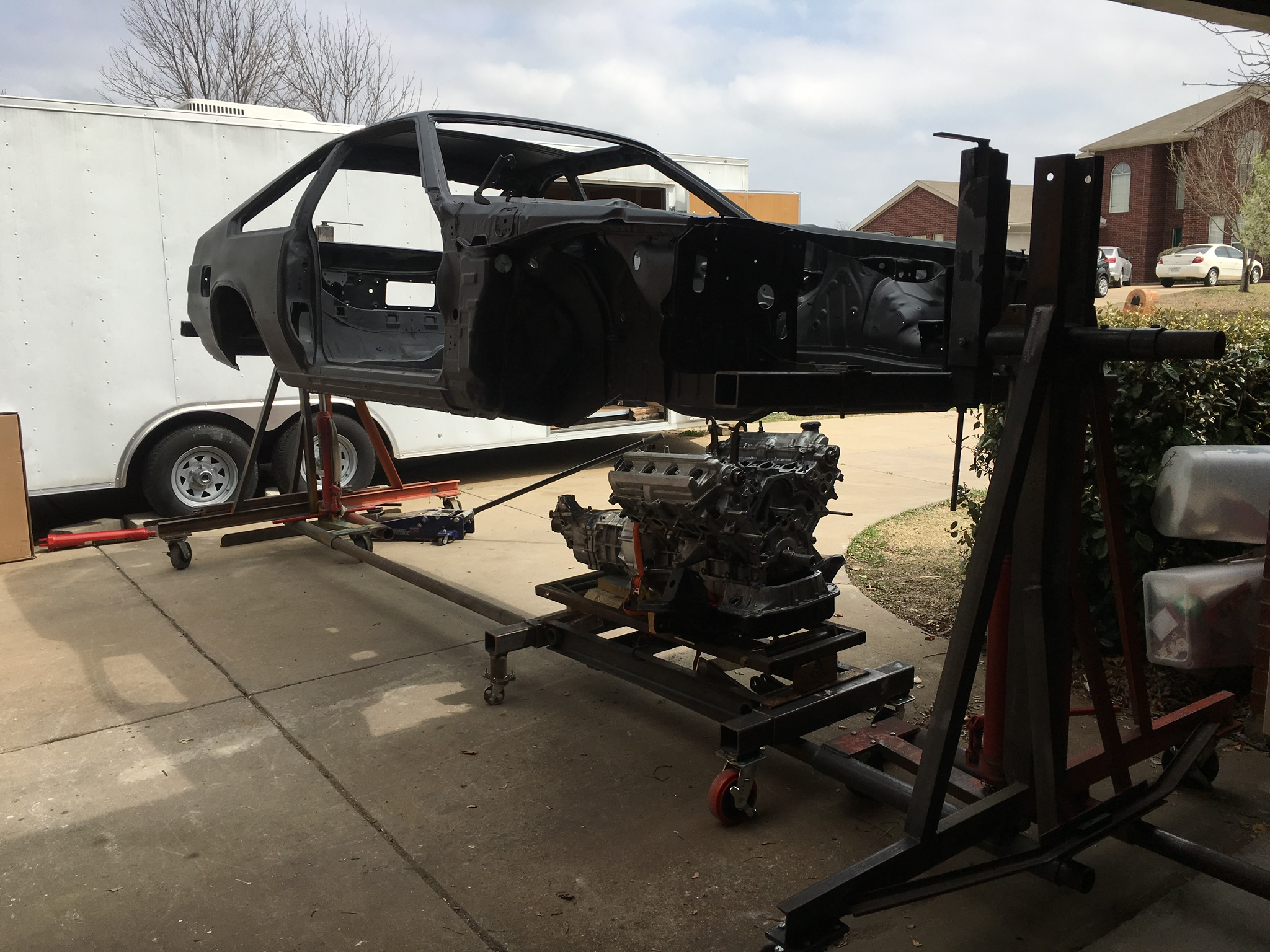

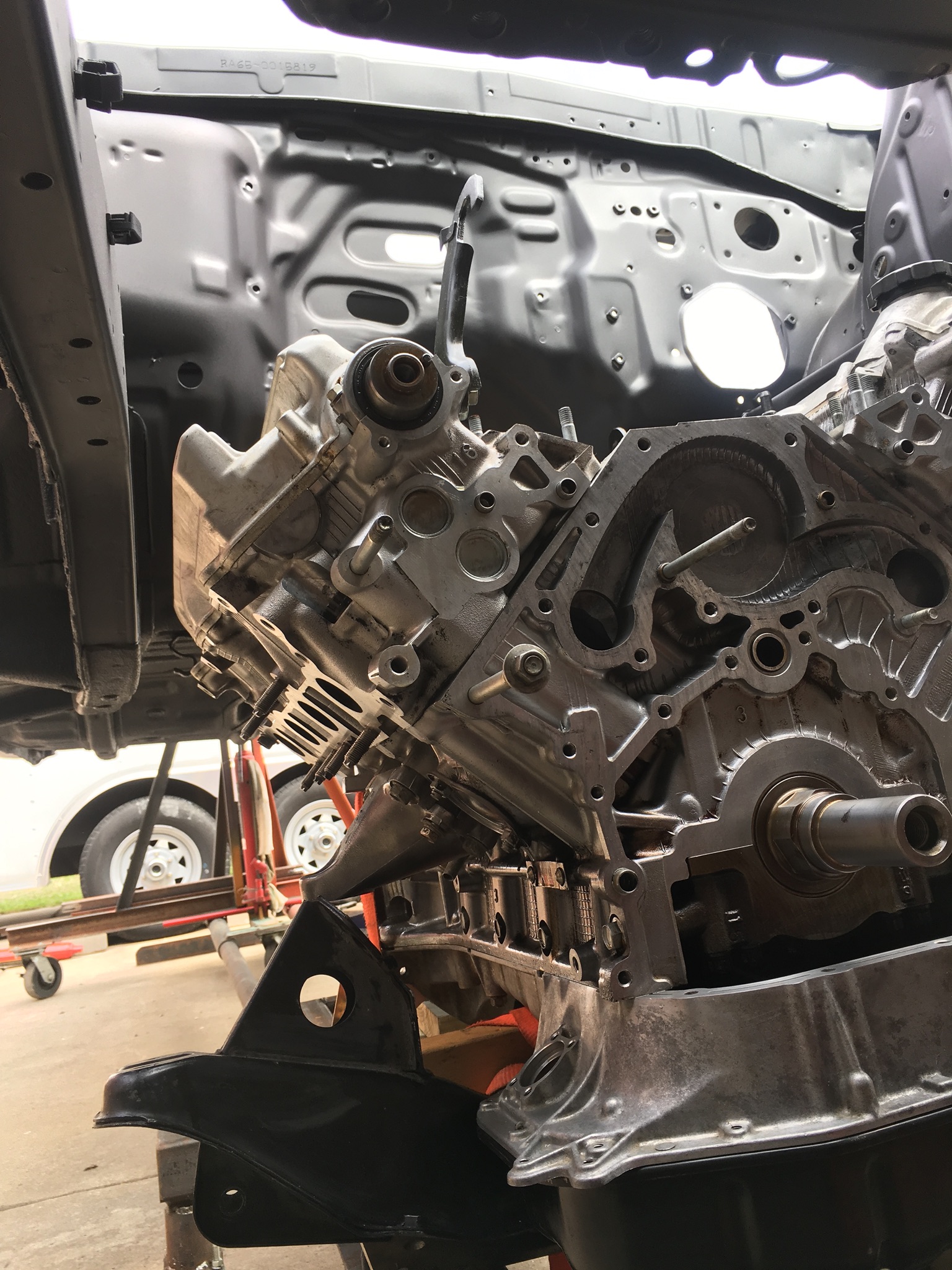

Now that the Assembly is in place, We just have to lower the
car down slowly over the assembly until we can bolt the

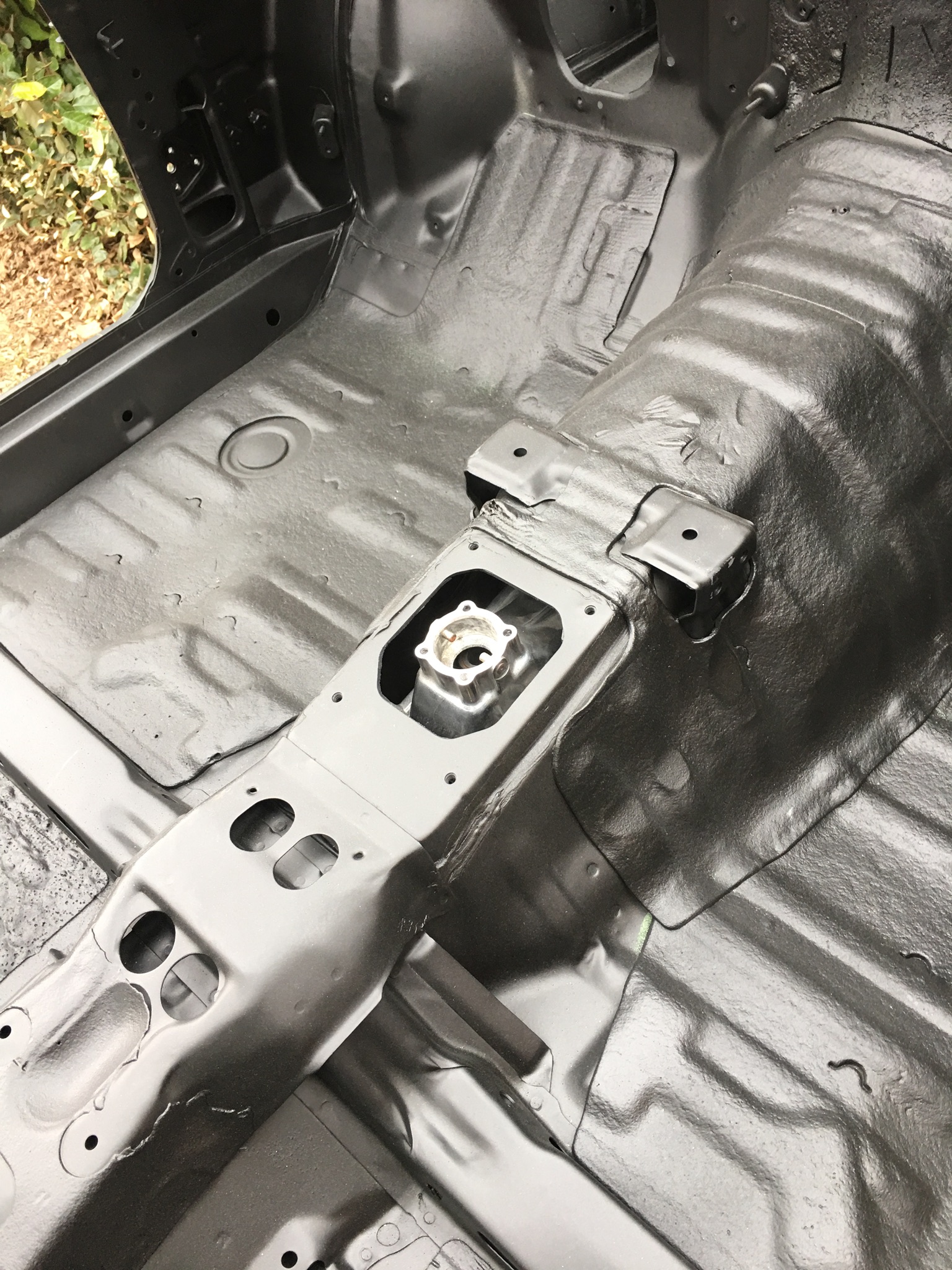

front crossmember and the transmission mount to the frame.
 |
 |
 |
 |
 |
 |
 |
 |
 |

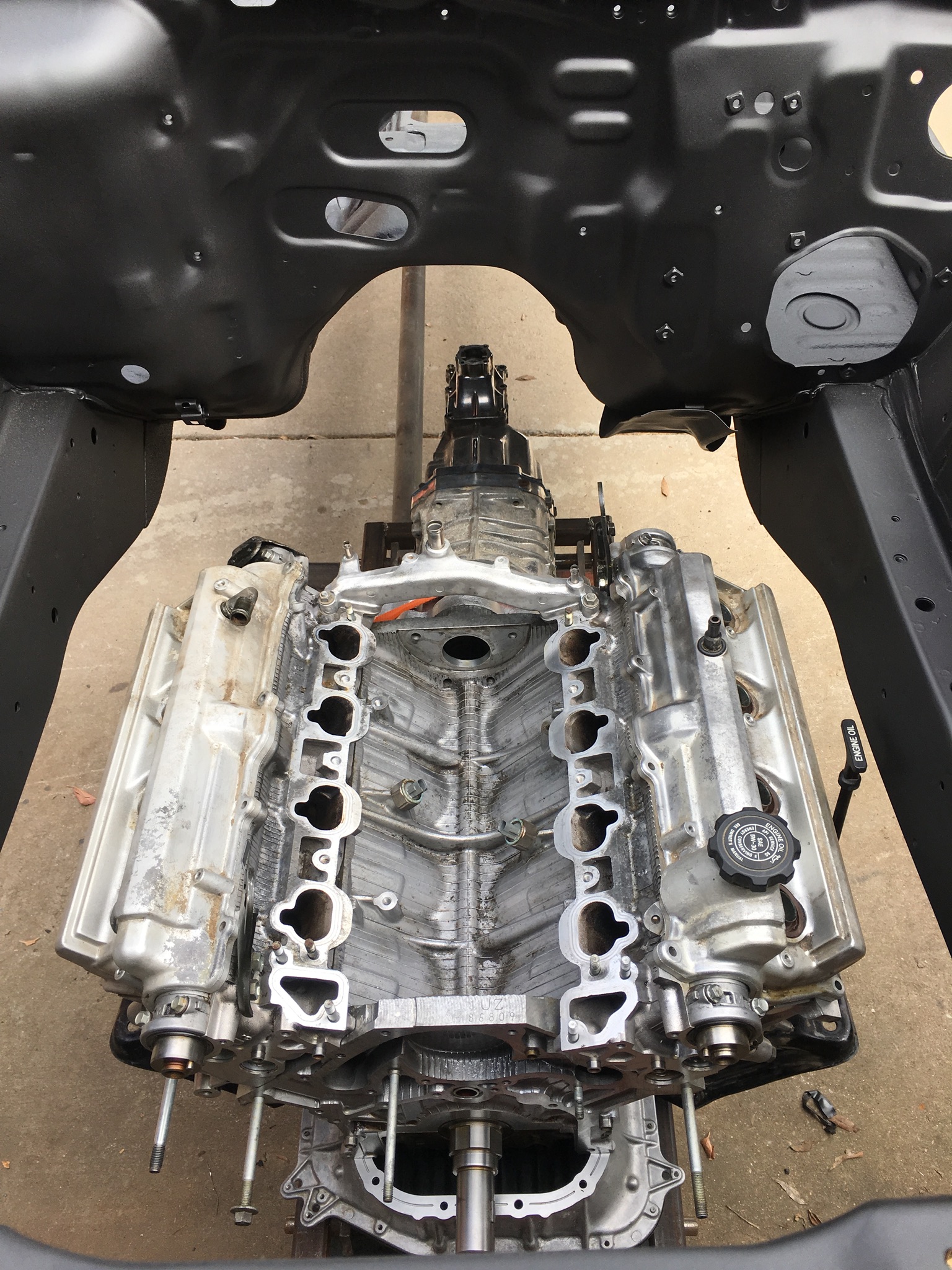

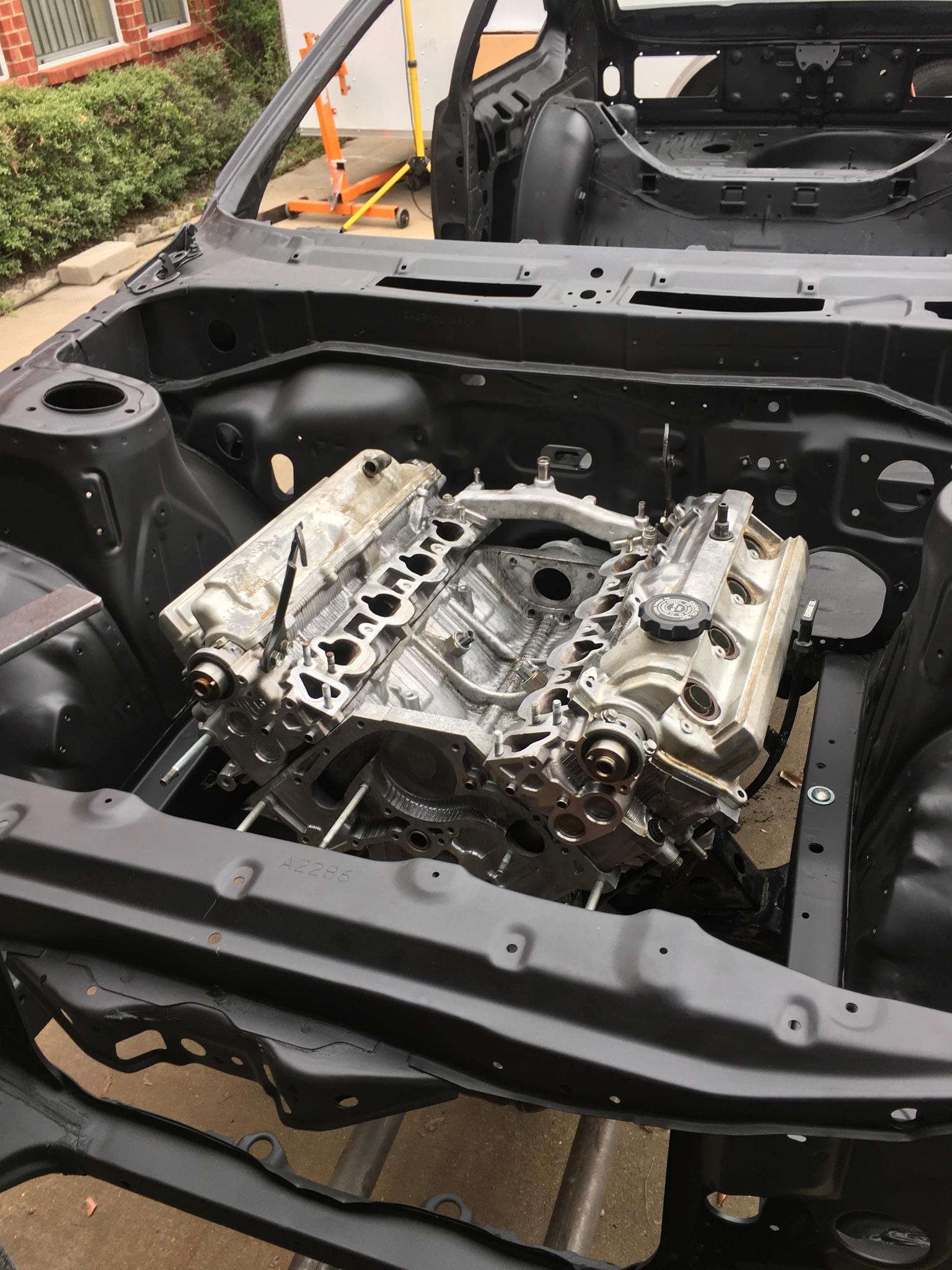

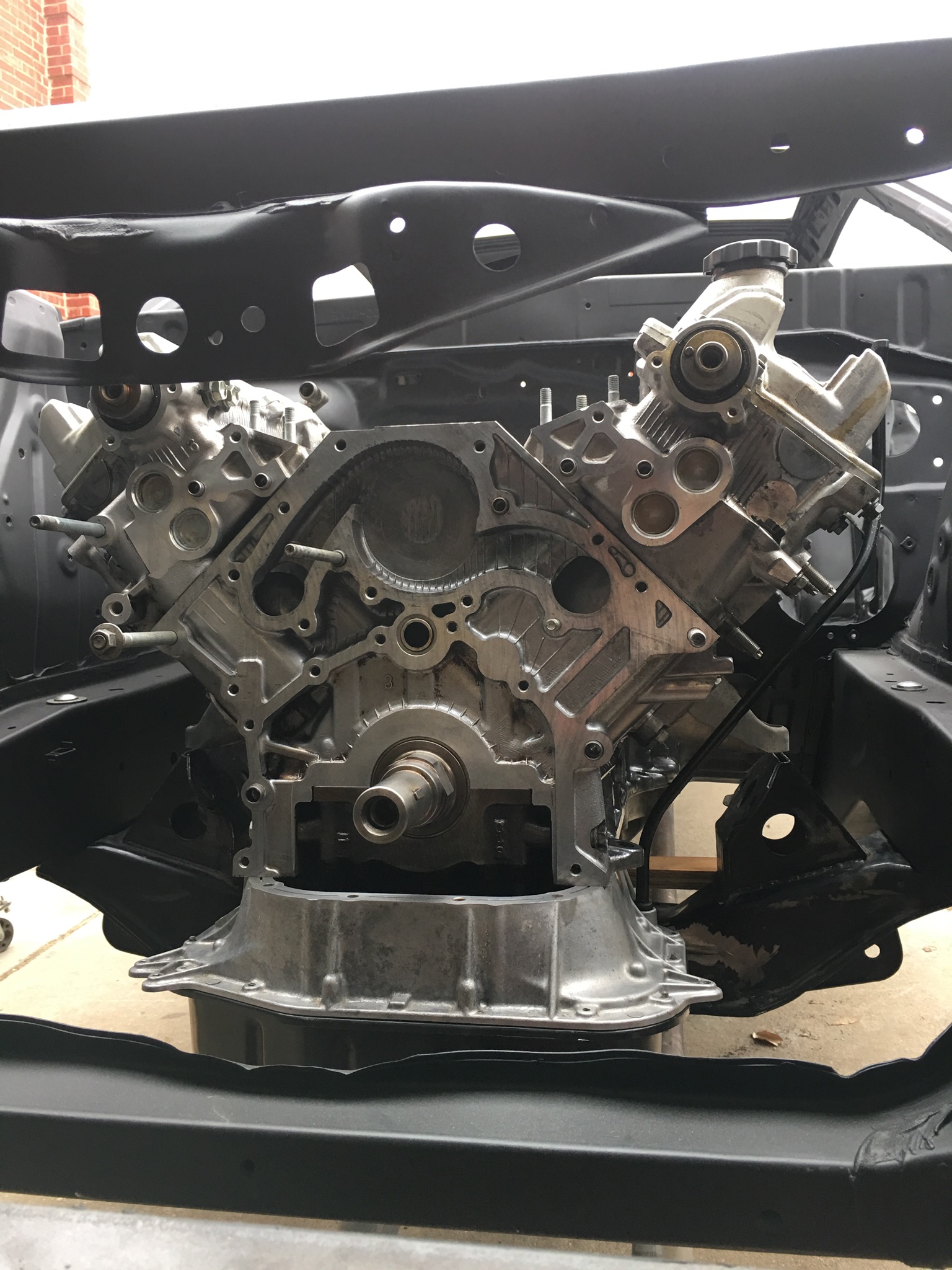

And There it is. A Nice Fit
 |
 |
